Raimondi Leveling System Wall Pliers

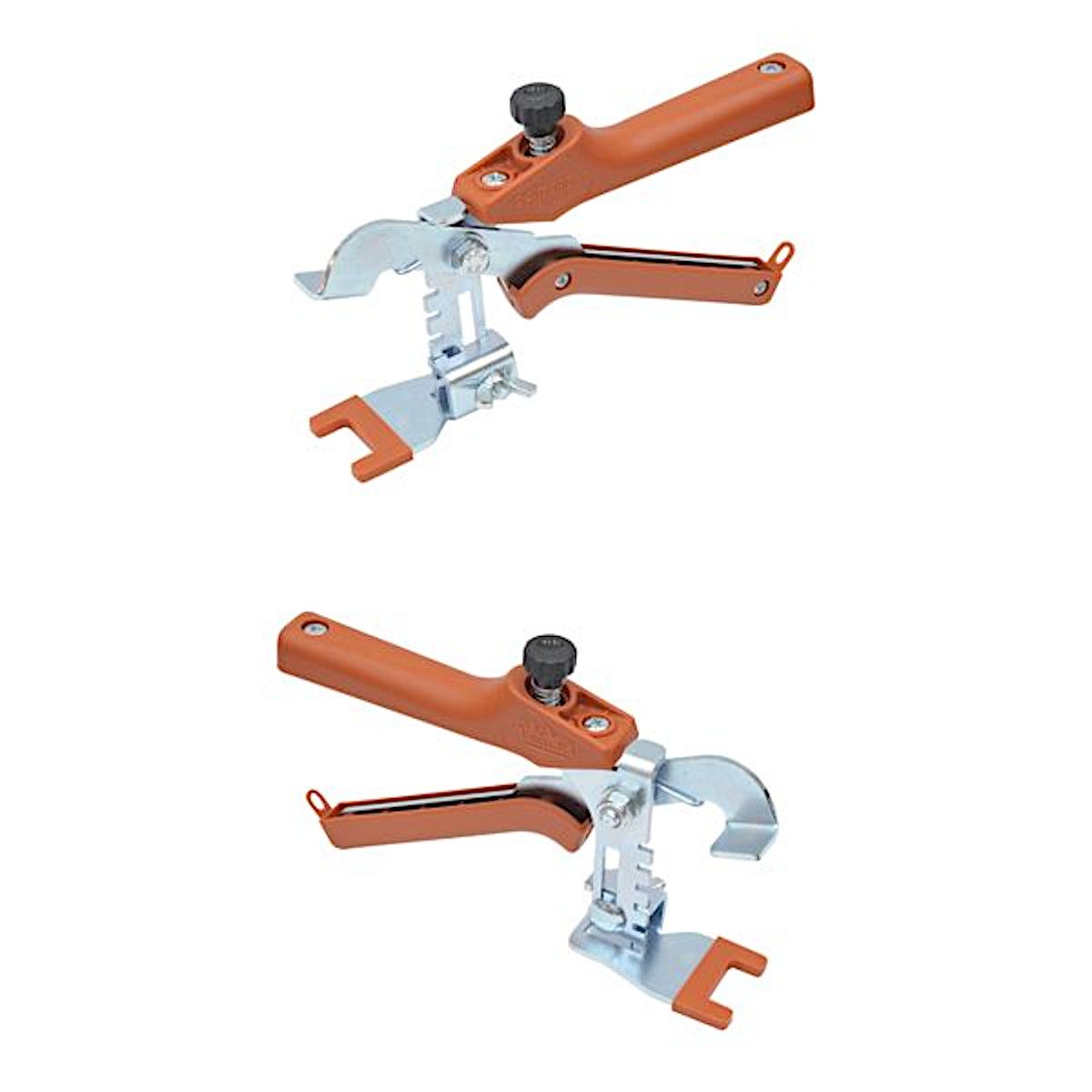

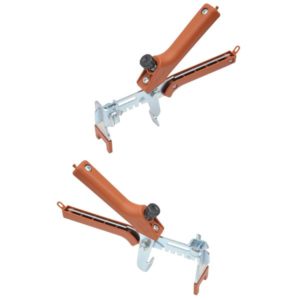

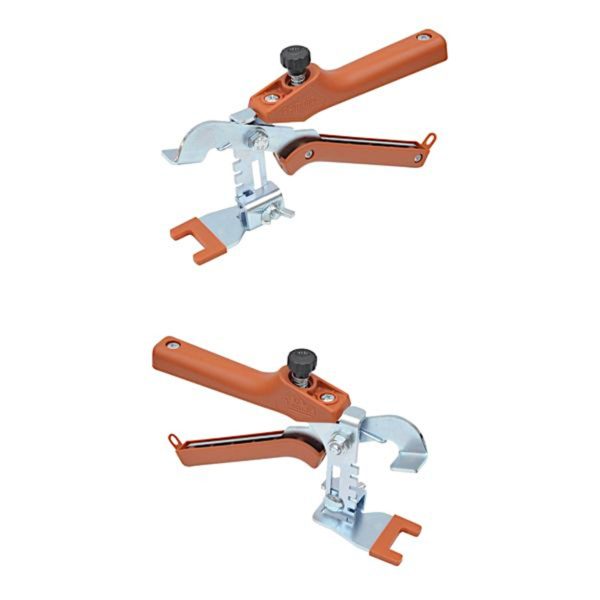

The Raimondi Leveling System wall pliers are for use with the RLS two-part clip and wedge system on vertical surfaces. These pliers allow the installer to easily push the wedges into the clips to align the tile surface. Greatly reduces finger fatigue.

1 in stock (can be backordered)

Raimondi Leveling System Wall Pliers $30.90
Only 1 items left in stock!

Raimondi Leveling System Wall Pliers

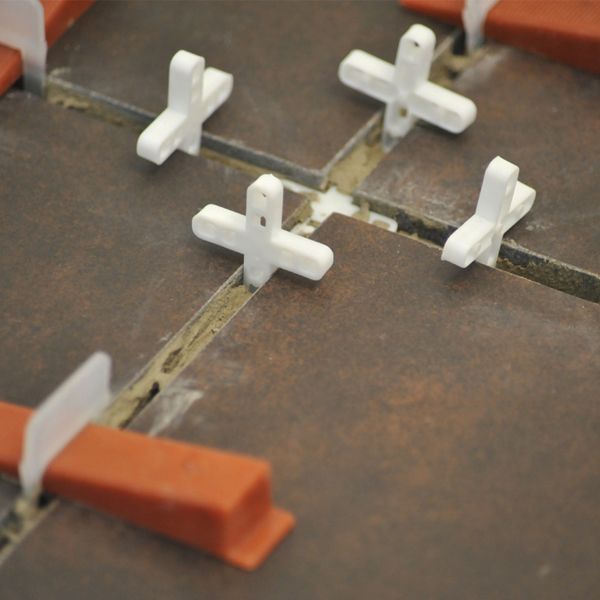

The Raimondi Leveling System makes setting tiles easy, faster and ensures your tiles will be perfectly leveled. The RLS system was developed for both DIY and professional tile layers to overcome the common problem of uneven tiles a.k.a. tile lippage. This innovative system of interlocking clips and wedges ensure your floor will be perfectly level from one tile to the next.

Minimum Required Joint: 1/16″ with Clear Clips, and 1/8″ with Red Clips

Tile Thickness: 1/8″ to 1/2″

How to Use the Raimondi Leveling System
1. Spread your adhesive.
2. Insert clip underneath the tiles along the 4 sides. (Larger tiles may require 2 clips per side.)
3. Set your tile and beat with a rubber mallet.
4. Insert wedge into slot at base of clip. Adjustable pliers are recommended.

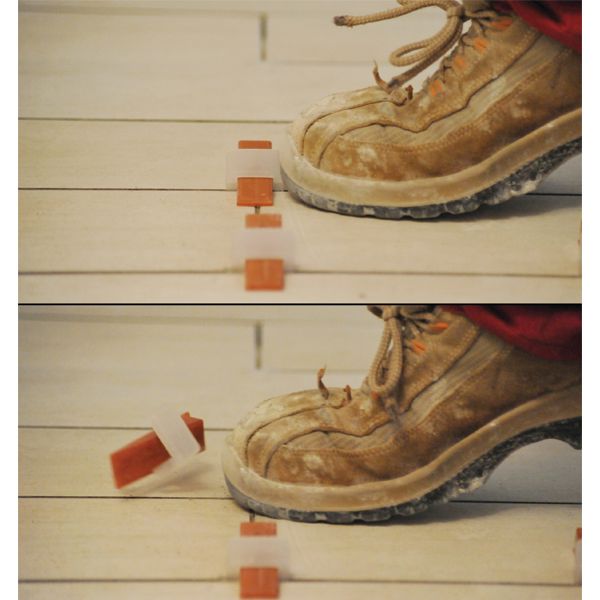

5. When adhesive sets, separate protrusion using rubber mallet or feet. Beat parallel to the joint.
6. Sweep surface and save reusable wedges.
