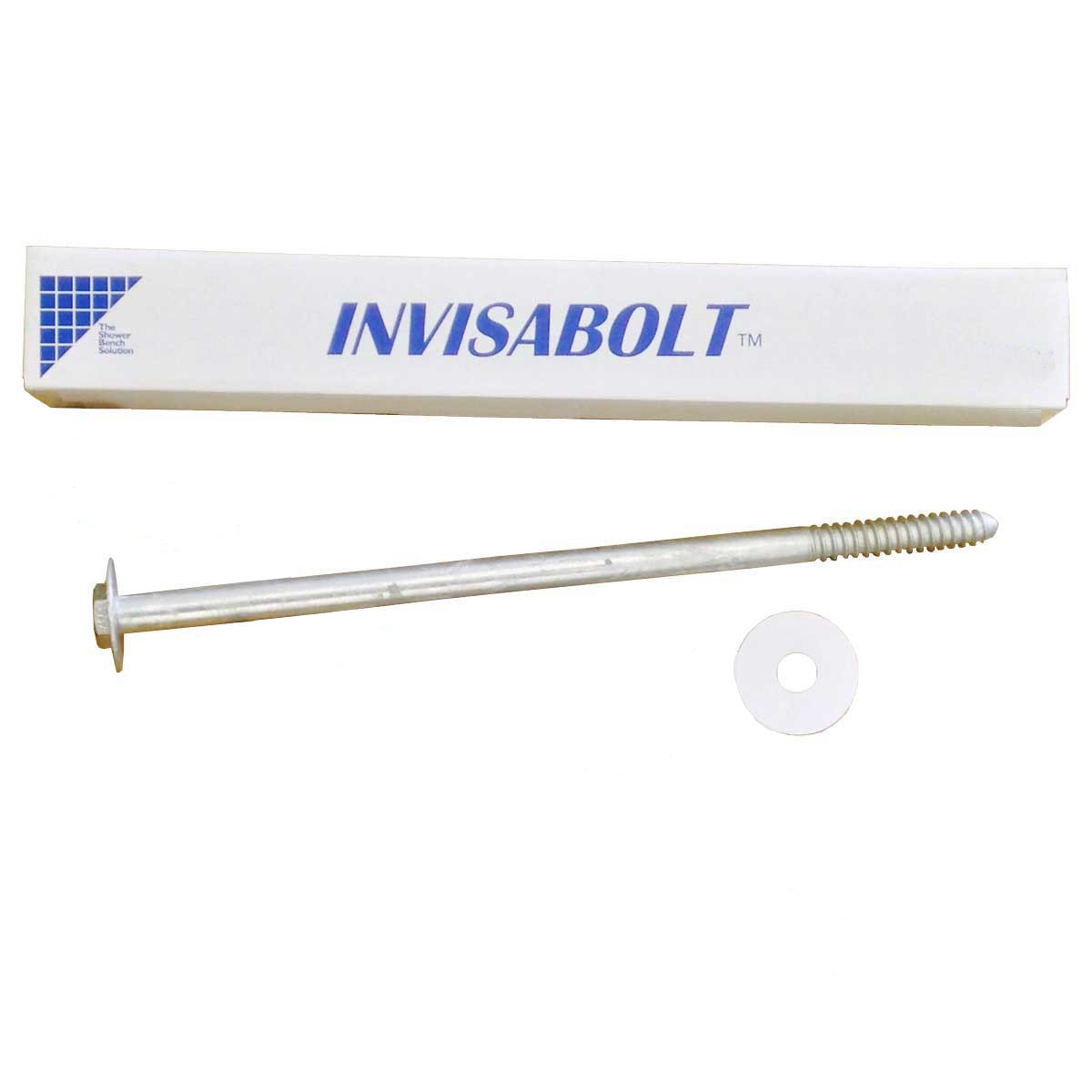

Innovis Invisabolt Support System

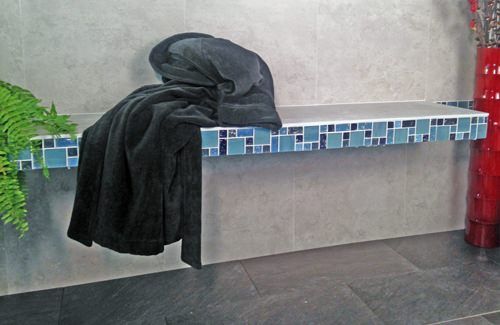

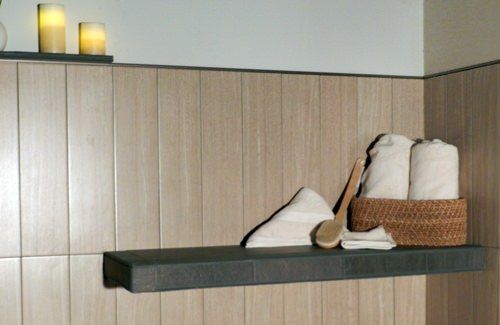

The Innovis Invisabolt Support System (1 Bolt Only) is a system designed for use with the Innovis BB-ADJR adjustable Better Bench which allows for a floating bench (no end connection required), and completely free of any visible support.

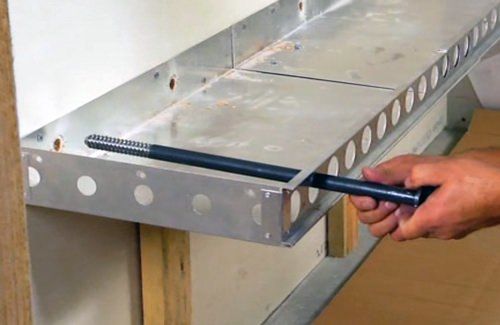

This is done by simply inserting several of the Invisabolts through the holes in the back of the unit prior to filling the bench with mortar. Mounting to a 2×6 stud wall is recommended; Minimum 2×4 stud wall with a direct ceiling connection is required.
To determine Invisabolt support requirement:
- Mounting wall to wall up to 36″: No additional support required
- Mounting wall to wall up to 63″ Two (2) required
- Mounting on back wall and one side wall up to 36″: Two (2) required
- Mounting on back wall and one side wall up to 63″ Three (3) required
- Mounting with no side support up to 36″: Two (2) required
- Mounting with no side support up to 48″: Three (3) required
- Mounting with no side support up to 63″ max span: Four (4) required
Notice: Bench NOT Included. 1 Bolt ONLY
